Description
Combinación de horno y brasa, realizados en acero inoxidable de alta calidad dirigido a hostelería.
Sus características permiten un control de flujo de aire, avivar o ralentizar la intensidad de las brasas, para favorecer un alta eficacia y un alto ahorro de carbón.
Accessories
Included
- Poker
- Metal brush
- Oven grill
- Oven clamp
- Smoke register
- Charcoal grate
Optional
- Cupboard
- Firewall
- Table with wheels
- Oven grill
- Bonnet
- Tray support
Gallery
HBE 100
Charcoal Oven
Ref.: HBE100
Available colours
Technical data
| Grill dimensions (length x width): | 760 x 510 mm |
| Measurements (length x width x height): | 940 x 670 x 750 mm |
| Average production: | 90 kg/h |
| Service capacity: | 100 pax/hour |
| Average coal consumption: | 9 - 11 kg/day |
| Coal load: | 11 kg |
| Cooking temperature: | 250 - 350 ºC |
| Ignition time: | ≈ 40 minutes |
| Load autonomy: | 9 h |
| Equivalent power: | 4.5 kW |
| Extraction capacity: | 3200 m³/h |
| Maximum smoke flow: | 10.5 g/s |
Schematic
Blueprints
CHARCOAL OVEN HBE 100 -
Included Accessories
Optional Accessories

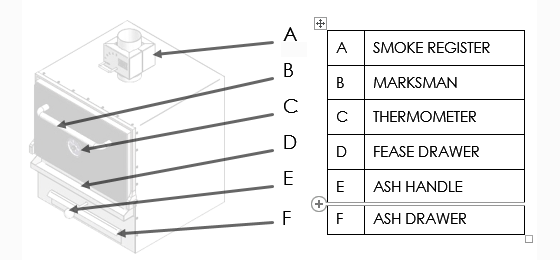

CHARCOAL OVEN HBE 100 - Schematic
CHARCOAL OVEN HBE 100 - Blueprints
CHARCOAL OVEN HBE 100 - Manual
Charcoal Oven HBE 100 - Datasheet
CHARCOAL OVEN HBE 100 - Photo Gallery
